SH Series
Rail Hoists, Rail-Mounted Chain HoistEnables precise positioning of heavy and large loads with its special chain, developed for demanding operating conditions.
Thanks to sensors in the hand control unit, the crane maintains its position stably when released. With the Automatic Floating Mode feature, operators can release the control unit and guide the load directly, then instantly resume control via the unit when desired.
Technical Features:
- Capacity: 250-500 kg
- Crane Weight: 30-32.5 kg
- Max. Floating Mode Lifting Speed: 8-16 m/min
- Max. Lifting Height: 4 meters (customizable)
-
Description
-
Additional information
Unlike traditional cranes, servo technology senses the operator’s movements to provide precise, fluid control over loads. This delivers a material handling process that is faster, quieter, safer, more ergonomic, and highly energy-efficient.
Equipped with a high-durability load chain, it provides stable and secure operation under heavy loads over extended periods. This design ensures balanced, controlled handling performance in high-capacity applications.

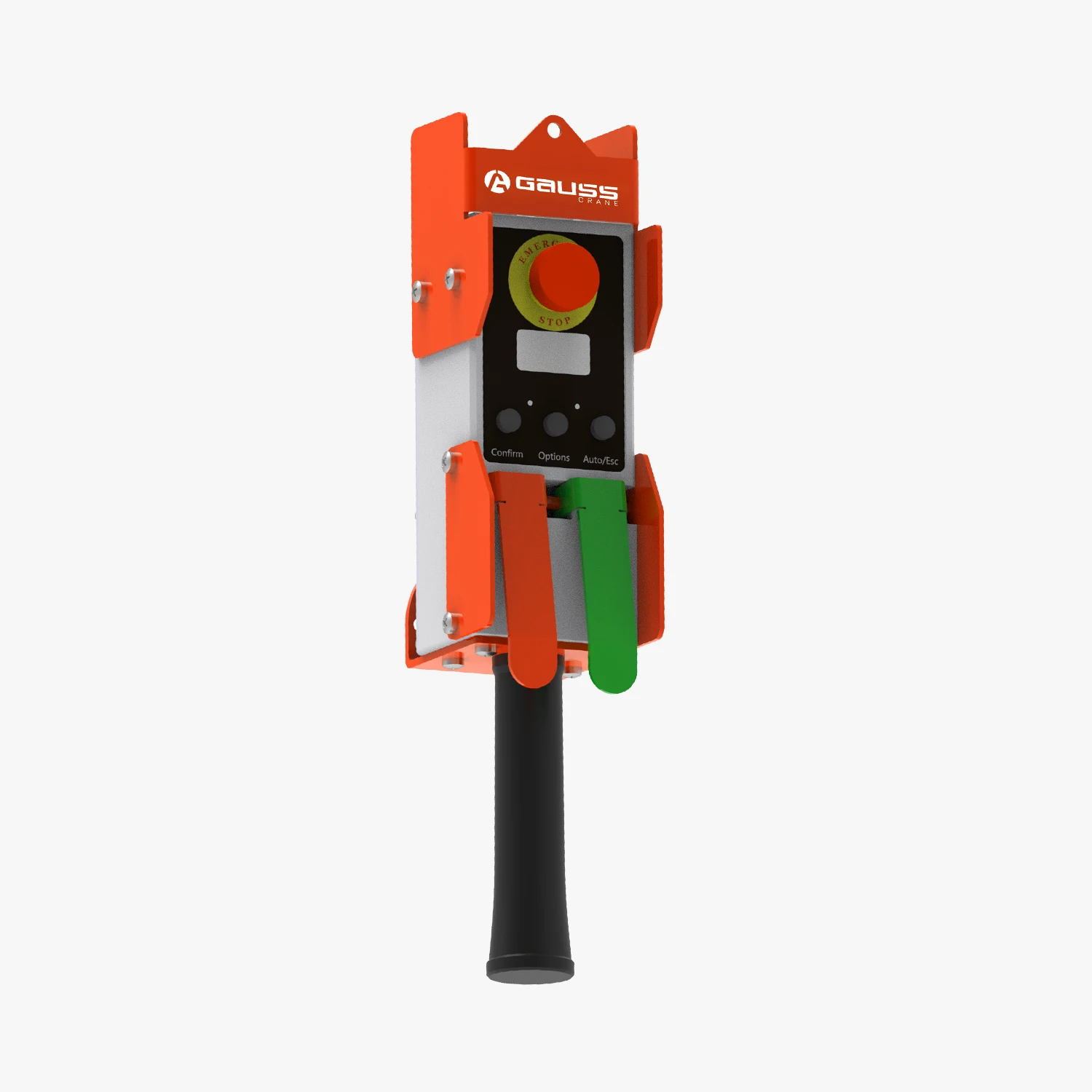

The advanced LCD control unit provides real-time load information to the operator. Virtual distance limits can be defined to contribute to the safe and uninterrupted management of operations.
Handling Optimization
Cycle times are shortened, and throughput is increased.
Plug-and-play operation with low maintenance needs ensures your downtime is kept to an absolute minimum.
| Float Mode | Controlling the crane system by applying force to the load being carried. |
|---|---|
| Control Method | Can be guided using an ergonomic hand grip control or a wired pendant controller. |
| Voltage & Power | 220 V & 50 Hz & 0,8 kW |
| Max. Lifting Speed | 8–16 m/min (subject to chosen crane motor and rated capacity) |
| Min. Lifting Speed | 0.3 m/min (high-precision positioning) |
